RM Evaporator Pans

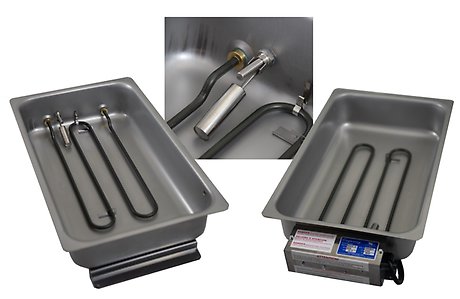

RM Tubular Condensate Evaporator Pans

Our new evapoway pan product is leading the way in the market place when it comes to required changes. We are one of the first companies in the industry to be recognized with our most recent testing at UL. Our product offering, with the use of sealed components, is recognized under UL60335-2-89 for use with flammable refrigerants.

Flammable Refrigerants

We are pleased to introduce our new RM Model series for use with flammable refrigerants

Regulatory

Our newly designed product and components are recognized by fulfilling all requirements for the new standard UL60335-2-89

Product Features

The original pan is designed to positively evaporate condensation water where no drain line is available. Evapoway™ units are used in many locations, including commercial refrigeration units, elevators and HVAC units.

Designed for use with flammable refrigerants
Positive evaporation
Space saving low profile footprint
Wide variety of wattages to accomodate dissipation needs

L: 15" , W: 10" , H: 4" Variations


Part Number	Model Description	Nominal Dimensions (in) L x W x H	Nominal Watts	Volts	Amps	Disspation Rate	Pan Capacity (quarts)
930-200	RM15X-3	15 x 10 x 6	1500	240	6.25	12 Gallons per Day	10
930-201	RM18X-1	15 x 10 x 6	1800	120	15.00	14 Gallons per Day	10
930-202	RM04X-1	15 x 10 x 6	400	120	3.33	3.5 Gallons per Day	10
930-203	RM04X-2	15 x 10 x 6	400	208	1.92	3.5 Gallons per Day	10
930-204	RM04X-3	15 x 10 x 6	400	240	1.67	3.5 Gallons per Day	10
930-205	RM05X-1	15 x 10 x 6	500	120	4.17	4.5 Gallons per Day	10
930-206	RM05X-2	15 x 10 x 6	500	208	2.40	4.5 Gallons per Day	10
930-207	RM05X-3	15 x 10 x 6	500	240	2.08	4.5 Gallons per Day	10
930-208	RM08X-1	15 x 10 x 6	800	120	6.67	6 Gallons per Day	10
930-209	RM08X-2	15 x 10 x 6	800	208	3.85	6 Gallons per Day	10
930-210	RM08X-3	15 x 10 x 6	800	240	3.33	6 Gallons per Day	10
930-211	RM10X-1	15 x 10 x 6	1000	120	8.33	8 Gallons per Day	10
930-212	RM10X-2	15 x 10 x 6	1000	208	4.81	8 Gallons per Day	10
930-213	RM10X-3	15 x 10 x 6	1000	240	4.17	8 Gallons per Day	10
930-214	RM12X-1	15 x 10 x 6	1200	120	10.00	10 Gallons per Day	10
930-215	RM12X-2	15 x 10 x 6	1200	208	5.77	10 Gallons per Day	10
930-216	RM12X-3	15 x 10 x 6	1200	240	5.00	10 Gallons per Day	10
930-217	RM15X-1	15 x 10 x 6	1500	120	12.50	12 Gallons per Day	10
930-218	RM15X-2	15 x 10 x 6	1500	208	7.21	12 Gallons per Day	10
930-219	RM18X-2	15 x 10 x 6	1800	208	8.65	14 Gallons per Day	10
930-220	RM18X-3	15 x 10 x 6	1800	240	7.50	14 Gallons per Day	10
930-221	RM20X-1	15 x 10 x 6	2000	120	16.67	15 Gallons per Day	10
930-222	RM20X-2	15 x 10 x 6	2000	208	9.62	15 Gallons per Day	10
930-223	RM20X-3	15 x 10 x 6	2000	240	8.33	15 Gallons per Day	10
930-224	RM22X-1	15 x 10 x 6	2200	120	18.33	17 Gallons per Day	10
930-225	RM22X-2	15 x 10 x 6	2200	208	10.58	17 Gallons per Day	10
930-226	RM22X-3	15 x 10 x 6	2200	240	9.17	17 Gallons per Day	10
930-227	RM24X-1	15 x 10 x 6	2400	120	20.00	19 Gallons per Day	10
930-228	RM24X-2	15 x 10 x 6	2400	208	11.54	19 Gallons per Day	10
930-229	RM24X-3	15 x 10 x 6	2400	240	10.00	19 Gallons per Day	10
930-230	RM26X-1	15 x 10 x 6	2600	120	21.67	21 Gallons per Day	10
930-231	RM26X-2	15 x 10 x 6	2600	208	12.50	21 Gallons per Day	10
930-232	RM26X-3	15 x 10 x 6	2600	240	10.83	21 Gallons per Day	10
930-233	RM28X-1	15 x 10 x 6	2800	120	23.33	23 Gallons per Day	10
930-234	RM28X-2	15 x 10 x 6	2800	208	13.46	23 Gallons per Day	10
930-235	RM28X-3	15 x 10 x 6	2800	240	11.67	23 Gallons per Day	10
930-236	RM30X-1	15 x 10 x 6	3000	120	25.00	24 Gallons per Day	10
930-237	RM30X-2	15 x 10 x 6	3000	208	14.42	24 Gallons per Day	10
930-238	RM30X-3	15 x 10 x 6	3000	240	12.50	24 Gallons per Day	10

L: 23" , W: 13" , H: 4" Variations


Part Number	Model Description	Nominal Dimensions (in) L x W x H	Nominal Watts	Volts	Amps	Disspation Rate	Pan Capacity (quarts)
930-100	RM05WW-1	23 x 13 x 4	500	120	4.17	4.5 Gallons per Day	15
930-101	RM06WW-1	23 x 13 x 4	600	120	5.00	5 Gallons per Day	15
930-102	RM10WW-1	23 x 13 x 4	1000	120	8.33	8 Gallons per Day	15
930-103	RM10WW-2	23 x 13 x 4	1000	208	4.81	8 Gallons per Day	15
930-104	RM10WW-3	23 x 13 x 4	1000	240	4.17	8 Gallons per Day	15
930-105	RM12WW-1	23 x 13 x 4	1200	120	10.00	10 Gallons per Day	15
930-106	RM15WW-1	23 x 13 x 4	1500	120	12.50	12 Gallons per Day	15
930-107	RM15WW-2	23 x 13 x 4	1500	208	7.21	12 Gallons per Day	15
930-108	RM15WW-3	23 x 13 x 4	1500	240	6.25	12 Gallons per Day	15
930-109	RM18WW-1	23 x 13 x 4	1800	120	15.00	14 Gallons per Day	15
930-110	RW20WW-2	23 x 13 x 4	2000	208	9.62	15 Gallons per Day	15
930-111	RW20WW-3	23 x 13 x 4	2000	240	8.33	15 Gallons per Day	15
930-112	RM30WW-1	23 x 13 x 4	3000	120	25.00	24 Gallons per Day	15
930-113	RM30WW-3	23 x 13 x 4	3000	240	12.50	24 Gallons per Day	15
930-114	RM04WW-1	23 x 13 x 4	400	120	3.33	3.5 Gallons per Day	15
930-115	RM04WW-2	23 x 13 x 4	400	208	1.92	3.5 Gallons per Day	15
930-116	RM04WW-3	23 x 13 x 4	400	240	1.67	3.5 Gallons per Day	15
930-117	RM05WW-2	23 x 13 x 4	500	208	2.40	4.5 Gallons per Day	15
930-118	RM05WW-3	23 x 13 x 4	500	240	2.08	4.5 Gallons per Day	15
930-119	RM06WW-2	23 x 13 x 4	600	208	2.88	5 Gallons per Day	15
930-120	RM06WW-3	23 x 13 x 4	600	240	2.50	5 Gallons per Day	15
930-121	RM08WW-1	23 x 13 x 4	800	120	6.67	6 Gallons per Day	15
930-122	RM08WW-2	23 x 13 x 4	800	208	3.85	6 Gallons per Day	15
930-123	RM08WW-3	23 x 13 x 4	800	240	3.33	6 Gallons per Day	15
930-124	RM12WW-2	23 x 13 x 4	1200	208	5.77	10 Gallons per Day	15
930-125	RM12WW-3	23 x 13 x 4	1200	240	5.00	10 Gallons per Day	15
930-126	RM18WW-2	23 x 13 x 4	1800	208	8.65	14 Gallons per Day	15
930-127	RM18WW-3	23 x 13 x 4	1800	240	7.50	14 Gallons per Day	15
930-128	RM20WW-1	23 x 13 x 4	2000	120	16.67	15 Gallons per Day	15
930-129	RM22WW-1	23 x 13 x 4	2200	120	18.33	17 Gallons per Day	15
930-130	RM22WW-2	23 x 13 x 4	2200	208	10.58	17 Gallons per Day	15
930-131	RM22WW-3	23 x 13 x 4	2200	240	9.17	17 Gallons per Day	15
930-132	RM24WW-1	23 x 13 x 4	2400	120	20.00	19 Gallons per Day	15
930-133	RM24WW-2	23 x 13 x 4	2400	208	11.54	19 Gallons per Day	15
930-134	RM24WW-3	23 x 13 x 4	2400	240	10.00	19 Gallons per Day	15
930-135	RM26WW-1	23 x 13 x 4	2600	120	21.67	21 Gallons per Day	15
930-136	RM26WW-2	23 x 13 x 4	2600	208	12.50	21 Gallons per Day	15
930-137	RM26WW-3	23 x 13 x 4	2600	240	10.83	21 Gallons per Day	15
930-138	RM28WW-1	23 x 13 x 4	2800	120	23.33	23 Gallons per Day	15
930-139	RM28WW-2	23 x 13 x 4	2800	208	13.46	23 Gallons per Day	15
930-140	RM28WW-3	23 x 13 x 4	2800	240	11.67	23 Gallons per Day	15
930-141	RM30WW-2	23 x 13 x 4	3000	208	14.42	24 Gallons per Day	15

L: 15" , W: 10" , H: 6" Variations


Part Number	Model Description	Nominal Dimensions (in) L x W x H	Nominal Watts	Volts	Amps	Disspation Rate	Pan Capacity (quarts)
930-200	RM15X-3	15 x 10 x 6	1500	240	6.25	12 Gallons per Day	10
930-201	RM18X-1	15 x 10 x 6	1800	120	15.00	14 Gallons per Day	10
930-202	RM04X-1	15 x 10 x 6	400	120	3.33	3.5 Gallons per Day	10
930-203	RM04X-2	15 x 10 x 6	400	208	1.92	3.5 Gallons per Day	10
930-204	RM04X-3	15 x 10 x 6	400	240	1.67	3.5 Gallons per Day	10
930-205	RM05X-1	15 x 10 x 6	500	120	4.17	4.5 Gallons per Day	10
930-206	RM05X-2	15 x 10 x 6	500	208	2.40	4.5 Gallons per Day	10
930-207	RM05X-3	15 x 10 x 6	500	240	2.08	4.5 Gallons per Day	10
930-208	RM08X-1	15 x 10 x 6	800	120	6.67	6 Gallons per Day	10
930-209	RM08X-2	15 x 10 x 6	800	208	3.85	6 Gallons per Day	10
930-210	RM08X-3	15 x 10 x 6	800	240	3.33	6 Gallons per Day	10
930-211	RM10X-1	15 x 10 x 6	1000	120	8.33	8 Gallons per Day	10
930-212	RM10X-2	15 x 10 x 6	1000	208	4.81	8 Gallons per Day	10
930-213	RM10X-3	15 x 10 x 6	1000	240	4.17	8 Gallons per Day	10
930-214	RM12X-1	15 x 10 x 6	1200	120	10.00	10 Gallons per Day	10
930-215	RM12X-2	15 x 10 x 6	1200	208	5.77	10 Gallons per Day	10
930-216	RM12X-3	15 x 10 x 6	1200	240	5.00	10 Gallons per Day	10
930-217	RM15X-1	15 x 10 x 6	1500	120	12.50	12 Gallons per Day	10
930-218	RM15X-2	15 x 10 x 6	1500	208	7.21	12 Gallons per Day	10
930-219	RM18X-2	15 x 10 x 6	1800	208	8.65	14 Gallons per Day	10
930-220	RM18X-3	15 x 10 x 6	1800	240	7.50	14 Gallons per Day	10
930-221	RM20X-1	15 x 10 x 6	2000	120	16.67	15 Gallons per Day	10
930-222	RM20X-2	15 x 10 x 6	2000	208	9.62	15 Gallons per Day	10
930-223	RM20X-3	15 x 10 x 6	2000	240	8.33	15 Gallons per Day	10
930-224	RM22X-1	15 x 10 x 6	2200	120	18.33	17 Gallons per Day	10
930-225	RM22X-2	15 x 10 x 6	2200	208	10.58	17 Gallons per Day	10
930-226	RM22X-3	15 x 10 x 6	2200	240	9.17	17 Gallons per Day	10
930-227	RM24X-1	15 x 10 x 6	2400	120	20.00	19 Gallons per Day	10
930-228	RM24X-2	15 x 10 x 6	2400	208	11.54	19 Gallons per Day	10
930-229	RM24X-3	15 x 10 x 6	2400	240	10.00	19 Gallons per Day	10
930-230	RM26X-1	15 x 10 x 6	2600	120	21.67	21 Gallons per Day	10
930-231	RM26X-2	15 x 10 x 6	2600	208	12.50	21 Gallons per Day	10
930-232	RM26X-3	15 x 10 x 6	2600	240	10.83	21 Gallons per Day	10
930-233	RM28X-1	15 x 10 x 6	2800	120	23.33	23 Gallons per Day	10
930-234	RM28X-2	15 x 10 x 6	2800	208	13.46	23 Gallons per Day	10
930-235	RM28X-3	15 x 10 x 6	2800	240	11.67	23 Gallons per Day	10
930-236	RM30X-1	15 x 10 x 6	3000	120	25.00	24 Gallons per Day	10
930-237	RM30X-2	15 x 10 x 6	3000	208	14.42	24 Gallons per Day	10
930-238	RM30X-3	15 x 10 x 6	3000	240	12.50	24 Gallons per Day	10
