Short Assemblies

Product Description

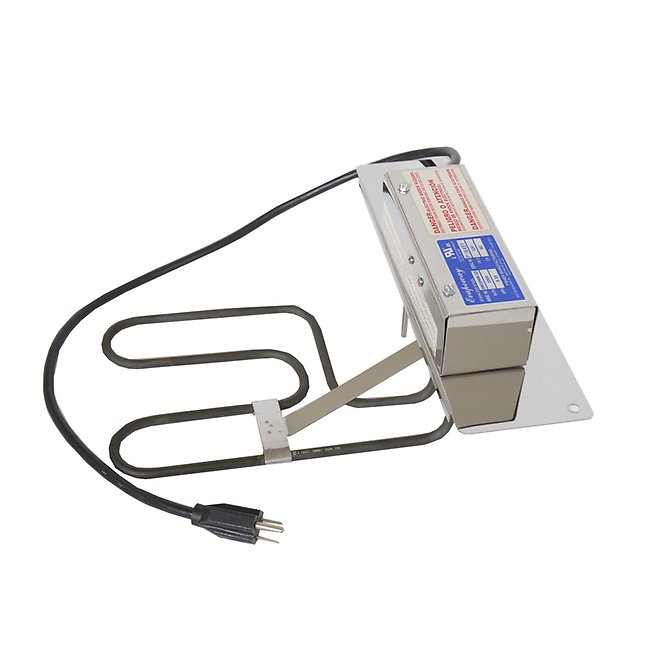

The original Evapoway™ Electric Condensate Evaporator Short Assembly.

A short assembly is the portion of the Evapoway unit that contains the heating element and control box with all components and cord. (No pan included).

  • UL® recognized file SA4508
  • One (1) year warranty
  • Contact your local Backer Springfield sales representative or call 1-800-692-4733 for additional configurations and specifications.

Part No.

Watts

Volts

Weight

910-102

1500

240

4.00 lbs

910-113

500

120

4.00 lbs

910-118

600

120

4.00 lbs

910-121

750

120

4.00 lbs

910-116

800

120

4.00 lbs

910-120

1000

208

4.00 lbs

910-103

1000

120

4.00 lbs

910-109

1000

120

4.00 lbs

910-104

1000

208

4.00 lbs

910-122

1000

208

4.00 lbs

910-115

1000

240

4.00 lbs

910-111

1000

120

4.00 lbs

910-117

1500

120

4.00 lbs

910-112

1500

120

4.00 lbs

910-105

1500

120

4.00 lbs

910-108

1500

208

4.00 lbs

910-114

1500

240

4.00 lbs

910-119

1500

208

4.00 lbs

910-110

1800

120

4.00 lbs

910-107

2000

120

4.00 lbs

910-101

2000

208

4.00 lbs

910-106

2000

240

4.00 lbs
