PTC Condensate Evaporator Pans

PTC Element Condensate Evaporator Pans

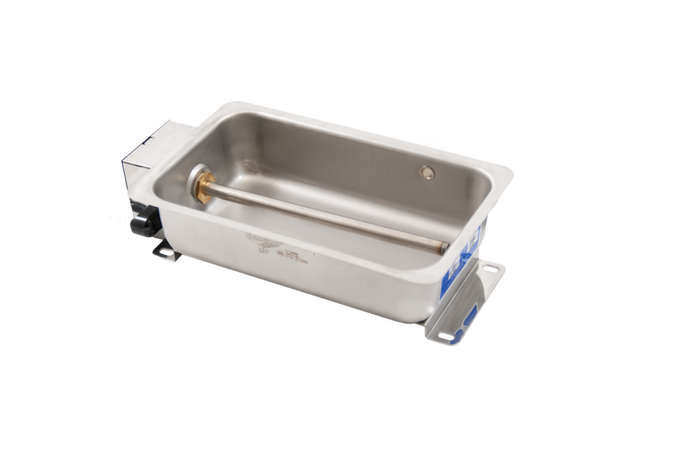

The positive thermal coefficient (PTC) electric condensate evaporator pan takes advantage of new technology that can reliably supply wattage at a lower level suitable for low flash point refrigerants. Wattage is constantly being provided at a reduced rate of approximately 10% of nominal value in open air as the resistance is self-regulated to a higher value with the higher sheath temperature. Once condensate water is introduced to the heating element wattage will be provided at the nominal value as the resistance is self-regulated to a lower value with the lower sheath temperature.

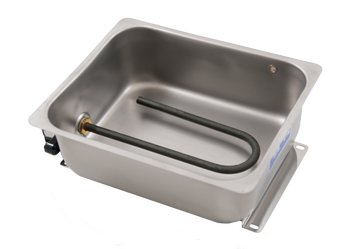

There are four wattage levels available with the PTC designs which are 400 watts, 500 watts, 750 watts, and 1000 watts with the u-bend shape. Our offering for the PTC designs have two voltage levels at 120 volts including cording with a molded plug and 240 volts including cording with stripped leads. All cording is included standard with the condensate evaporator pans with the proper strain relief hardware at the following lengths of 3 feet, 6 feet, or 9 feet. This pan design eliminates hardware to remove all electro-mechanical devices, provide a lower profile, and to reduce maintenance costs.

Available in 12 separate pan series with various models in each series, the condensate evaporators can dissipate anywhere from 1.5 to 8.0 gallons of water per day. Our Evapoway™ units are manufactured in a variety of sizes and capacities to accommodate all your application needs.



Product Description

The positive thermal coefficient (PTC) electric condensate evaporator pan takes advantage of new technology that can reliably supply wattage at a lower level suitable for low flash point refrigerants.

  • Positive Thermal Coefficient (PTC) heating element
  • Corrosion resistant 22 gauge stainless steel construction
  • Positive evaporation
  • Low wattage / 1000 watt maximum
  • Low flash point refigerant applications
  • UL® recognized file SA4508
  • Cord length: 3', 6', or 9' options. 120V with plug / 240V with stripped leads
  • One (1) year warranty
  • Contact your local Backer Springfield sales representative or call 1-800-692-4733 for additional configurations and specifications.

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-100

PTC04T-1

400

120

3.33

3.5 Gallons per Day

1.75 Quarts

950-101

PTC04T-3

400

240

1.67

3.5 Gallons per Day

1.75 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-160

PTC04Q-1

400

120

3.33

3.5 Gallons per Day

2.8 Quarts

950-161

PTC04Q-3

400

240

1.67

3.5 Gallons per Day

2.8 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-102

PTC05S-1

500

120

4.17

4.0 Gallons per Day

2.37 Quarts

950-103

PTC05S-3

500

240

2.08

4.0 Gallons per Day

2.37 Quarts

950-104

PTC05S-1

500

120

4.17

4.0 Gallons per Day

2.37 Quarts

950-105

PTC05S-3

500

240

2.08

4.0 Gallons per Day

2.37 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-120

PTC04M-1

400

120

3.33

3.5 Gallons per Day

4 Quarts

950-121

PTC04M-3

400

240

1.67

3.5 Gallons per Day

4 Quarts

950-122

PTC05M-1

500

120

4.17

4.0 Gallons per Day

4 Quarts

950-123

PTC05M-3

500

240

2.08

4.0 Gallons per Day

4 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-142

PTC04Y-1

400

120

3.33

3.5 Gallons per Day

6.6 Quarts

950-143

PTC04Y-3

400

240

1.67

3.5 Gallons per Day

6.6 Quarts

950-144

PTC05Y-1

500

120

4.17

4.0 Gallons per Day

6.6 Quarts

950-145

PTC05Y-3

500

240

2.08

4.0 Gallons per Day

6.6 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-106

PTC04WS-1

400

120

3.33

3.5 Gallons per Day

4.3 Quarts

950-107

PTC04WS-3

400

240

1.67

3.5 Gallons per Day

4.3 Quarts

950-108

PTC05WS-1

500

120

4.17

4.0 Gallons per Day

4.3 Quarts

950-109

PTC05WS-3

500

240

2.08

4.0 Gallons per Day

4.3 Quarts

950-110

PTC10WS-1

1000

120

8.33

8.0 Gallons per Day

4.3 Quarts

950-111

PTC10WS-3

1000

240

4.17

8.0 Gallons per Day

4.3 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-124

PTC04W-1

400

120

3.33

3.5 Gallons per Day

6.3 Quarts

950-125

PTC04W-3

400

240

1.67

3.5 Gallons per Day

6.3 Quarts

950-126

PTC05W-1

500

120

4.17

4.0 Gallons per Day

6.3 Quarts

950-127

PTC05W-3

500

240

2.08

4.0 Gallons per Day

6.3 Quarts

950-128

PTC10W-1

1000

120

8.33

8.0 Gallons per Day

6.3 Quarts

950-129

PTC10W-3

1000

240

4.17

8.0 Gallons per Day

6.3 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-136

PTC04X-1

400

120

3.33

3.5 Gallons per Day

10 Quarts

950-137

PTC04X-3

400

240

1.67

3.5 Gallons per Day

10 Quarts

950-138

PTC05X-1

500

120

4.17

4.0 Gallons per Day

10 Quarts

950-139

PTC05X-3

500

240

2.08

4.0 Gallons per Day

10 Quarts

950-140

PTC10X-1

1000

120

8.33

8.0 Gallons per Day

10 Quarts

950-141

PTC10X-1

1000

240

4.17

8.0 Gallons per Day

10 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-146

PTC04XY-1

400

120

3.33

3.5 Gallons per Day

9 Quarts

950-147

PTC04XY-3

400

240

1.67

3.5 Gallons per Day

9 Quarts

950-148

PTC05XY-1

500

120

4.17

4.0 Gallons per Day

9 Quarts

950-149

PTC05XY-3

500

240

2.08

4.0 Gallons per Day

9 Quarts

950-150

PTC10XY-1

750

120

6.25

5.5 Gallons per Day

9 Quarts

950-151

PTC10XY-3

750

240

3.13

5.5 Gallons per Day

9 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-112

PTC04WWS-1

400

120

3.33

3.5 Gallons per Day

7 Quarts

950-113

PTC04WWS-3

400

240

1.67

3.5 Gallons per Day

7 Quarts

950-114

PTC05WWS-1

500

120

4.17

4.0 Gallons per Day

7 Quarts

950-115

PTC05WWS-3

500

240

2.08

4.0 Gallons per Day

7 Quarts

950-116

PTC07WWS-1

750

120

6.25

5.5 Gallons per Day

7 Quarts

950-117

PTC07WWS-3

750

240

3.13

5.5 Gallons per Day

7 Quarts

950-118

PTC10WWS-1

1000

120

8.33

8.0 Gallons per Day

7 Quarts

950-119

PTC10WWS-3

1000

240

4.17

8.0 Gallons per Day

7 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-130

PTC04WW-1

400

120

3.33

3.5 Gallons per Day

15 Quarts

950-131

PTC04WW-3

400

240

1.67

3.5 Gallons per Day

15 Quarts

950-132

PTC05WW-1

500

120

4.17

4.0 Gallons per Day

15 Quarts

950-133

PTC05WW-3

500

240

2.08

4.0 Gallons per Day

15 Quarts

950-134

PTC10WW-1

1000

120

8.33

8.0 Gallons per Day

15 Quarts

950-135

PTC10WW-3

1000

240

4.17

8.0 Gallons per Day

15 Quarts

Part No.

Model No.

Watts

Volts

Amps

Dissipation Rate

Capacity

950-152

PTC04XX-1

400

120

3.33

3.5 Gallons per Day

21 Quarts

950-153

PTC04XX-3

400

240

1.67

3.5 Gallons per Day

21 Quarts

950-154

PTC05XX-1

500

120

4.17

4.0 Gallons per Day

21 Quarts

950-155

PTC05XX-3

500

240

2.08

4.0 Gallons per Day

21 Quarts

950-156

PTC07XX-1

750

120

6.25

5.5 Gallons per Day

21 Quarts

950-157

PTC07XX-3

750

240

3.13

5.5 Gallons per Day

21 Quarts

950-158

PTC10XX-1

1000

120

8.33

8.0 Gallons per Day

21 Quarts

950-159

PTC10XX-3

1000

240

4.17

8.0 Gallons per Day

21 Quarts
