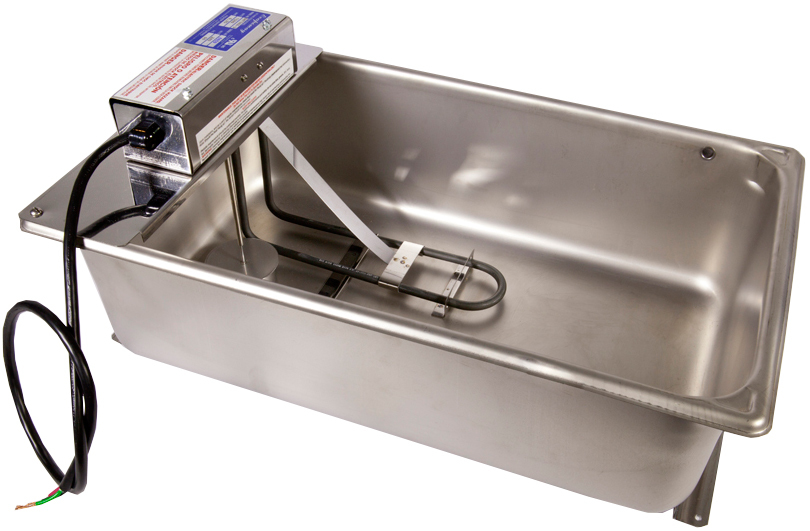

Industry leaders trust Backer Springfield’s Evapoway anti-condensate pans in Commercial Refrigeration, HVAC, and Vertical Transportation due to their durability, reliability, and use of high-quality components, including NSF-certified pans. Made of stainless steel, these electric condensate evaporators can handle up to 24 gallons of water per day, are UL recognized in the USA and Canada, and are rigorously tested for performance. Available in 5 series and 21 models with customizable sizes and capacities, Evapoway units meet diverse application needs where no drain line is available.
- Longer metal arm for slower heat transfer to back up thermostat
- non sealed switching devices
- switching devices not designed for use with flammable refrigerants
- control box mounted on top for taller footprint required
- vertical mounted float switch
- single bend and double bend heaters
- UL recognized under file UL SA4508

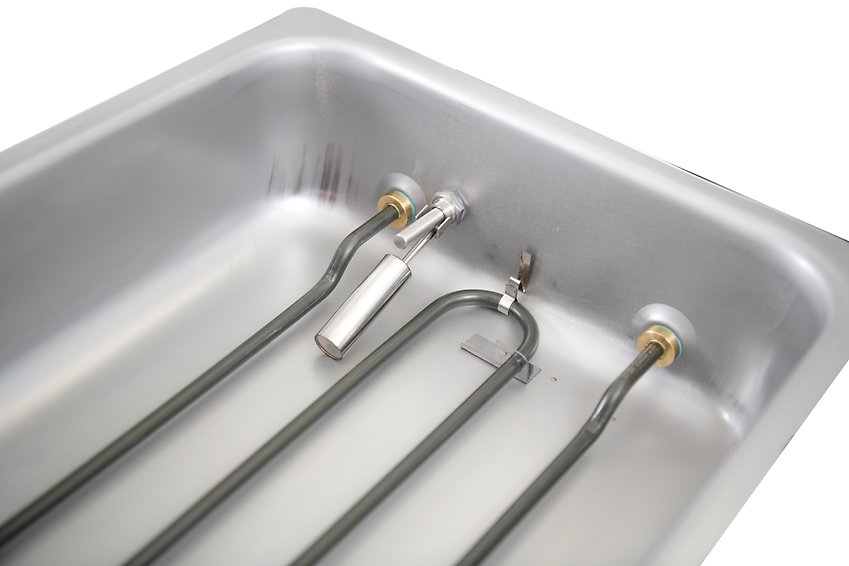

Backer’s new RM Model evapoway pans are UL60335-2-89 recognized, streamlining approval, testing, and launch for refrigerated cabinet manufacturers. These sealed components are available in four popular sizes and reduce testing time and capital costs. Learn more about how our UL-approved pans can simplify your next project.
- Element bend design consistent / same shape
- 4 pass element
- Element length dependent on wattage needed
- Short metal transfer bracket to thermostat for faster cycling times for better safety
- Recognized to fulfill the requirements of the new UL standard, UL60335-2-89
- Sealed switching devices
- Side mounted float switch
- Designed for use with flammable refrigerants
- Control box side mounted for shorter height footprint required
- UL recognized under file UL SA4508

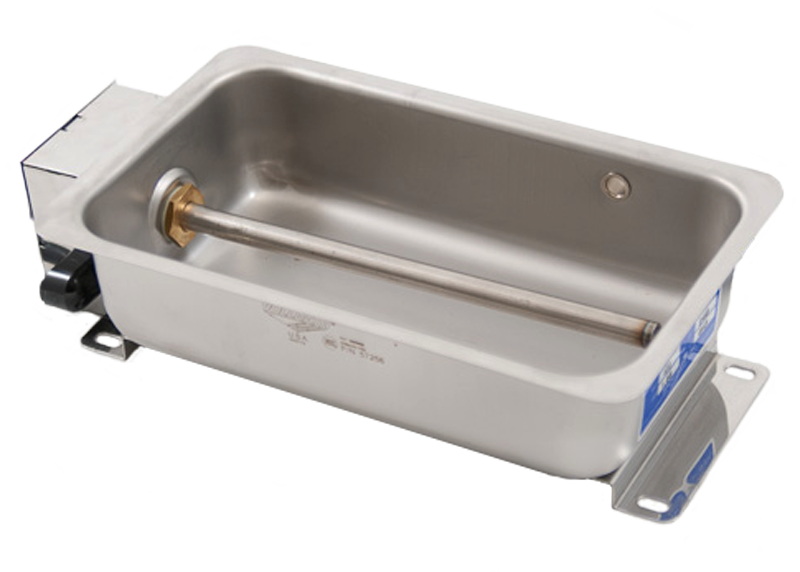

PTC Evaporative Pans
View PTC Model Info
Explore Backer Springfields, innovative PTC electric evaporator pans, designed for reliable, energy-efficient operation with adjustable wattage for low-flashpoint refrigerants. Available in multiple wattages, voltages, and sizes, these low-profile pans eliminate moving parts and reduce maintenance, dissipating 1.5–8.0 gallons of water daily to fit a wide range of applications.
- Positive Thermal Coefficient (PTC) heating element
- Corrosion resistant 22 gauge stainless steel construction
- Positive evaporation
- Low wattage / 1000 watt maximum
- Low flash point refigerant applications
- UL® recognized file SA4508
